FILIOFOCUS central

central fireplace, glassed

The glass-panel fixed-hood Filiofocus comes in two versions: version 2000 and version 1600. This model has curved heat-resistant glass panels.

The refined and original Filiofocus was awarded the Gold Medal for Design at the Batimat trade exhibition in Paris, and the Silver Medal for design in Stuttgart.





‘Fashion passes, style remains.’ (Coco Chanel)





Discover this model in augmented reality

Characteristics

characteristics wood-burning version

This model has four curved glass panels of which two are fixed and two slide open, serving as a fireguard. The hearth bowl can be positioned at three different heights: built into the floor, placed above the floor, or attached to a steel or constructed base.

Flue and other adaptation parts are made to measure
Paint: matt black (standard) or anthracite grey (optional)

Models in 3D
Performances
nominal heat output
6 kW
efficiency
50 %
CO output
0,08 %
dust
<75 MG/M3
Make a quote request
Dimensions
schéma de la cheminée Filiofocus 2000 vitrée

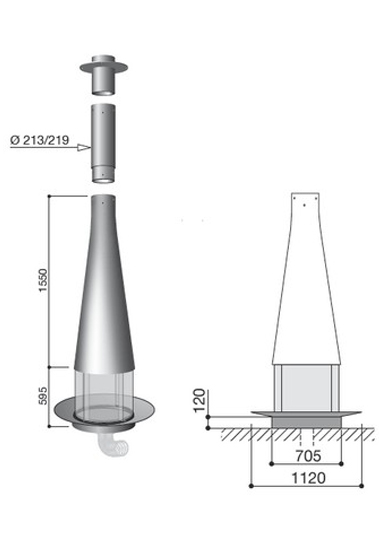

Filiofocus central 1600
Performances
Nominal heat output
6kW
Efficiency
50 %
CO output
0,08 %
dust
< 75 mg/m3
Dimensions

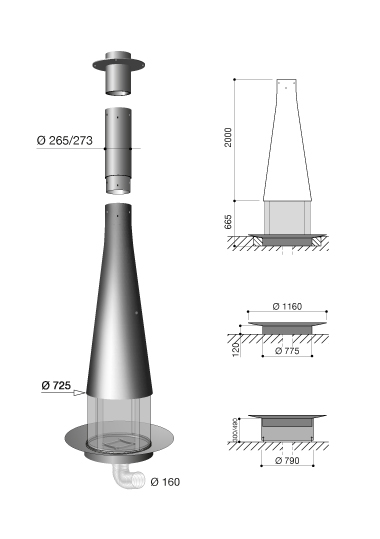

Filiofocus central 2000
characteristics gas version

In the gas version of this model, one-quarter of the diameter of the hearth is open, and the other three-quarters are closed by three fixed glass panels.
These models are supplied with a raised base (height: 255 mm) that houses the electronic mechanism for the burner as well as the gas supply system.

Operated by remote control (lighting, programming, adjustment, etc.)
Batteries allow continued operation in case of a power cut
Combustible : natural gas or propane
Decorative logs or ceramic pebbles

Flue and other adaptation parts are made to measure
Paint: matt black (standard) or anthracite grey (optional)

Guaranteed efficiency with a minimum distance of 5 m between the burner and the terminal (at the extremity of the flue outlet)

The gas burner must be connected by a licensed gas installer.

Models in 3D
Performances
nominal heat input (natural gas version)
14 kW
consumption (natural gas version)
1,316 m3/h
nominal heat input (propane)
13,5 kw
consumption (propane)
0,475 m3/h
Make a quote request
Dimensions

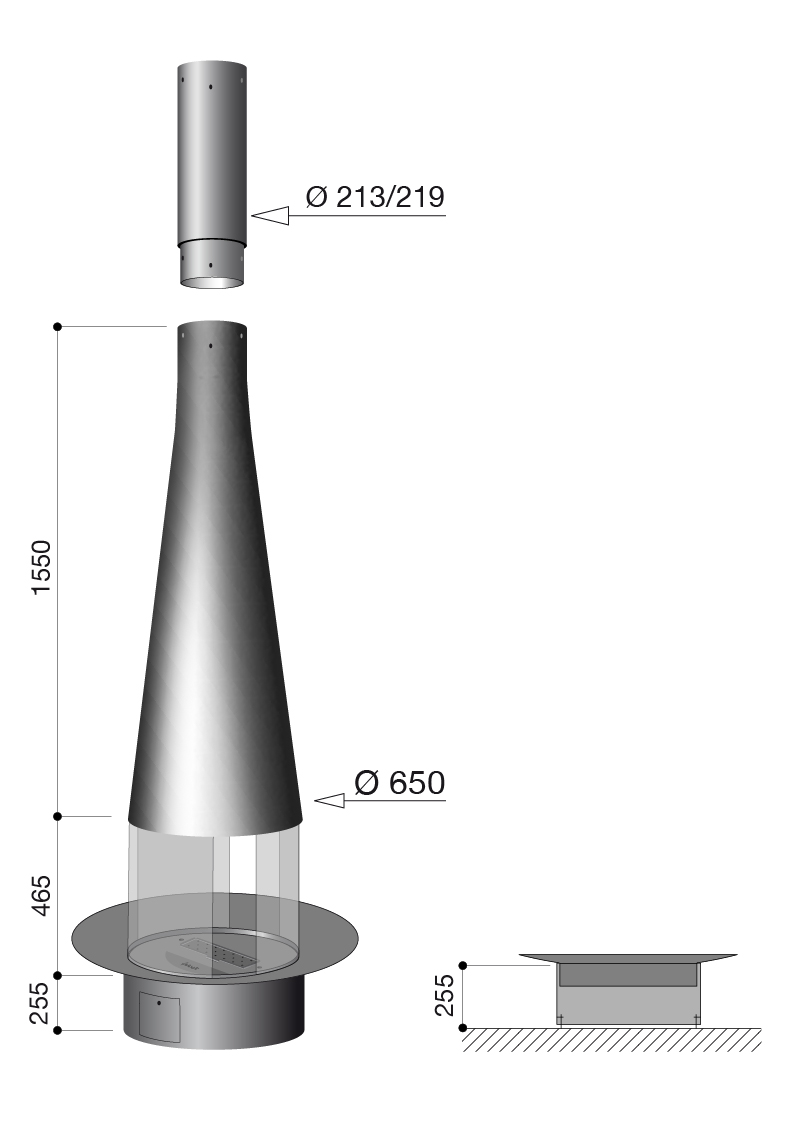

Filiofocus 1600 central
Performances
nominal heat imput (natural gas version)
9 kw
consumption (natural gas version)
0,89m3/h
nominal heat imput (propane)
7,8 kw
consumption (propane)
0,31 m3/h
Dimensions

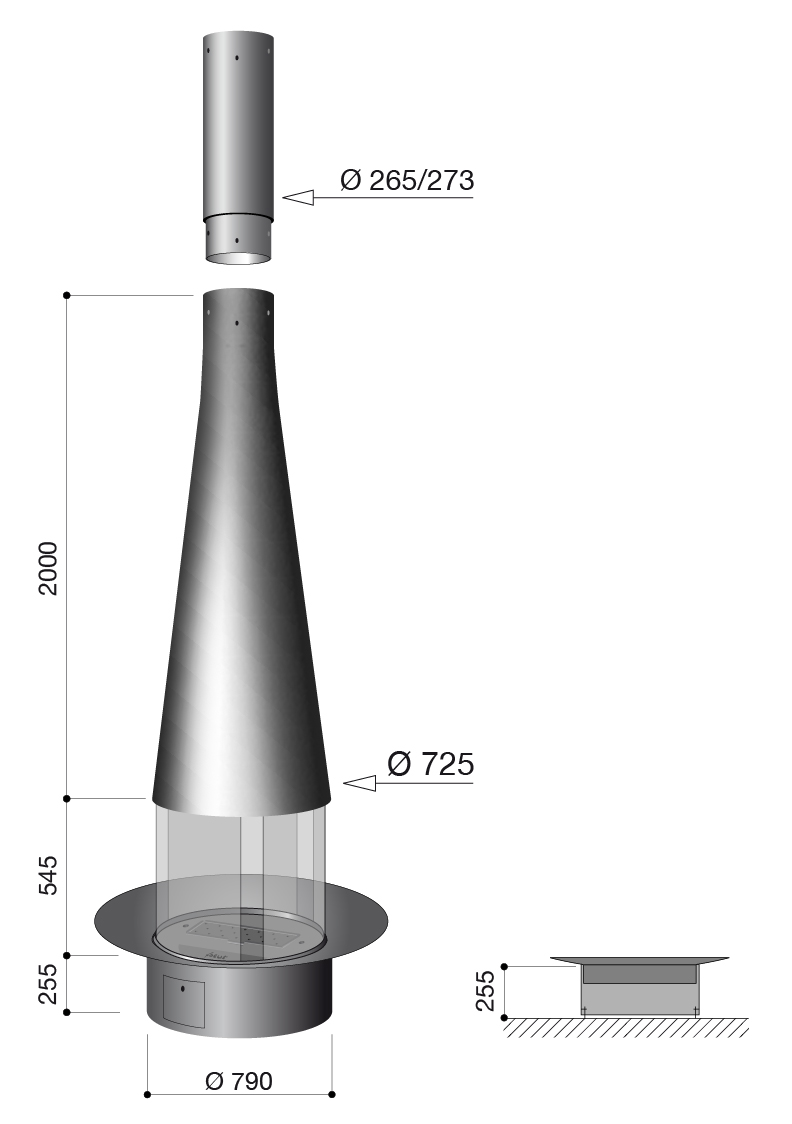

Filiofocus 2000 central
